Using headset with JabloPhone

Is it possible to use headset with my JabloPhone?

Yes, it is. You can use a connector adaptor RJ-11 ↔ 2x 3,5 mm jack (buy here) and normal PC-compatible headset with two separate connectors for MIC and HEADPHONES.

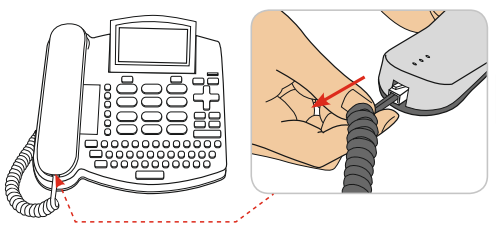

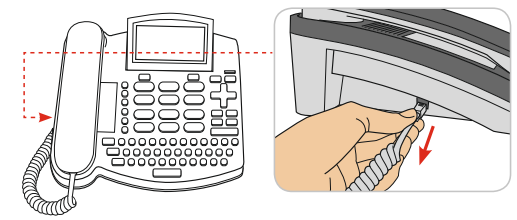

  1. Disconnect the receiver cable from the phone and receiver. Leave the receiver on the phone.

    2. qg headset 1

    qg headset 2

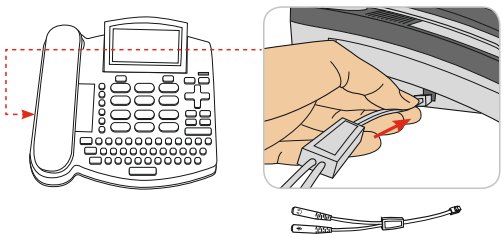

  2. Connect the adaptor to the phone.

    3. qg headset 3

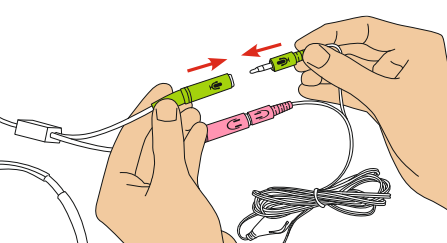

  3. Connect your headset to the adaptor.

    4. qg headset 4

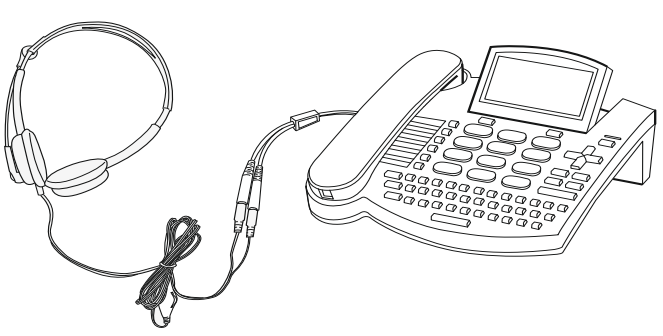

  4. You should end up with this:

    5. qg headset 5

Now you have to enable the headset support in the phone.

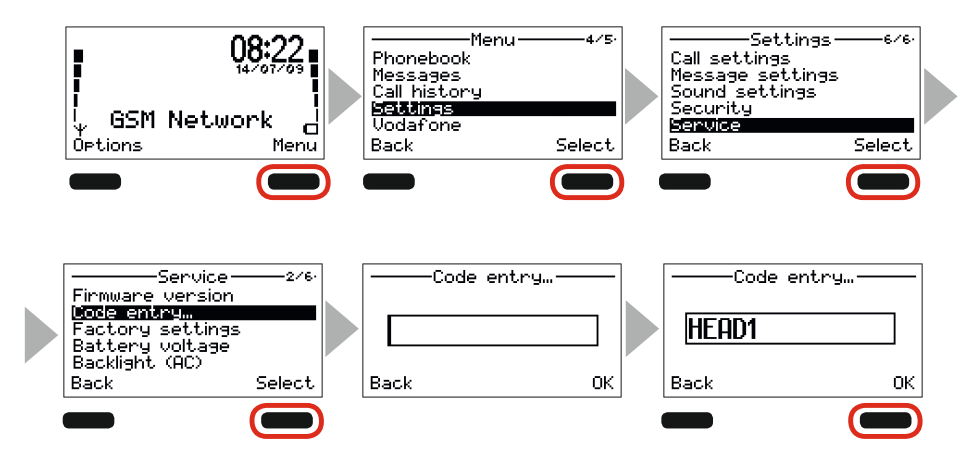

  1. Go to Menu of the JabloPhone and select Settings → Service → Code entry… → and enter HEAD1 to toggle on the headset support (for toggling off the headset support enter code HEAD0)

    2. qg headset 6

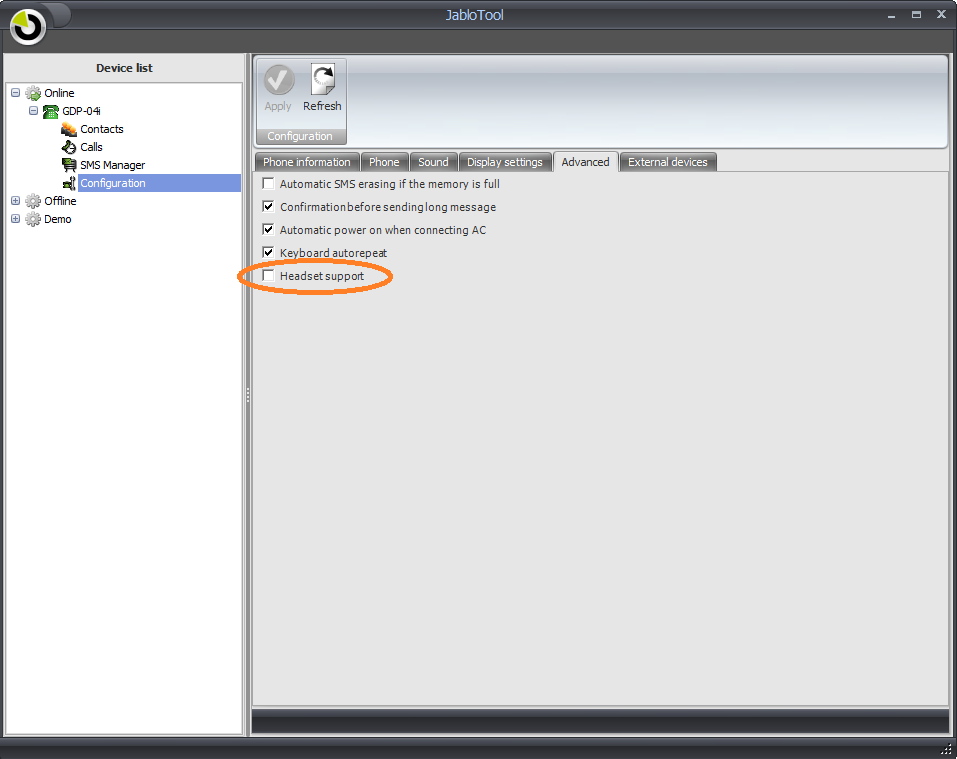

  2. Or use JabloTool desktop SW (download here) – connect your JabloPhone via USB to your computer, select Configuration → Advanced → tick Headset support

    3. JTD headset support

  3. For making, receiving or ending calls please use green tick button and red X button or spacebar.
