Using Raven with switchboard

Switchboard represents modern solution for dialling and call forwarding. We take it as a successor of the extension panels with quick dial hot keys. Our Switchboard covers all their functions, it is easy to organize and it works with your synchronized address book. Switchboard can be easily configured directly on phone or using Jablotool.com.

switchboard

How can you organise switchboard on your Raven?

Switchboard is supported by Raven with SW version 2.0 and newer. For update of your Raven please follow this guide: Raven Update.

Configure Switchboard using Jablotool.com
Configure Switchboard on the phone:
   Add a group of contacts
   Add a contact
   Edit contacts
   Move groups and contacts
   Delete groups and contacts in the switchboard

Enable the switchboard functionality

  1. Open the dialer of your Raven and select favourite contacts;
  2. star

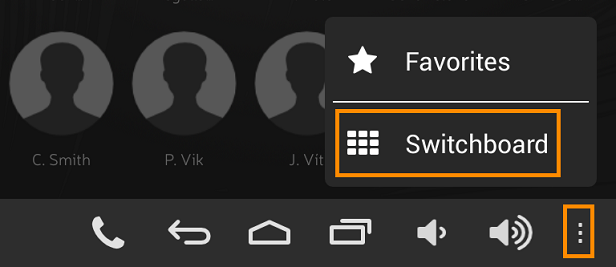

  3. Click on the three dots in the navigation bar in the bottom right corner and select Switchboard;
  4. select sb

  5. Your favourite contacts will be automatically imported to switchboard.




Configure Switchboard using Jablotool.com

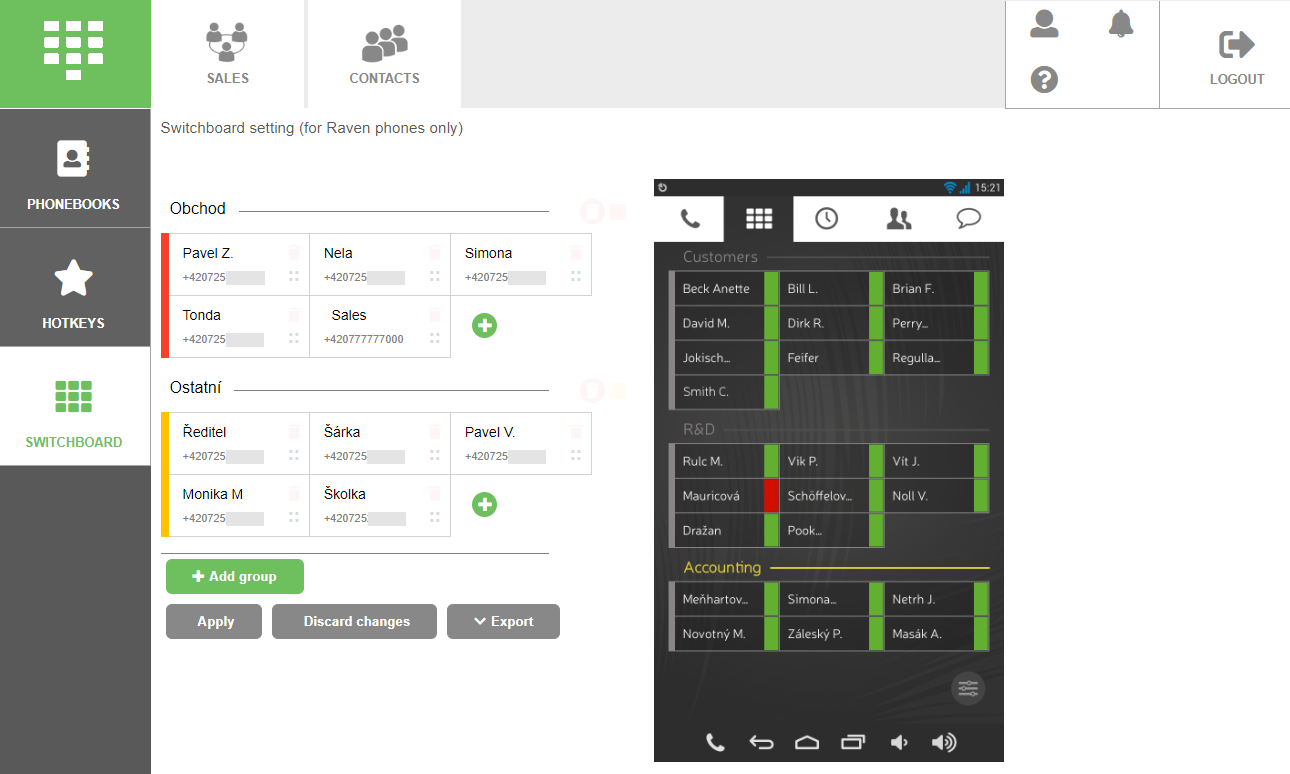

The most comfortable way to configure Switchboard on your phone is to use our cloud service Jablotool.com. Register your free account, register your Raven in it and comfortably configure your Switchboard (Contacts – Switchboard).

Jablotool.com: Configure Switchboard




Configure Switchboard on the phone:

Add a group of contacts

You can divide contacts in switchboard into multiple groups:

  1. While in switchboard tab, click on the settings button;
  2. settings

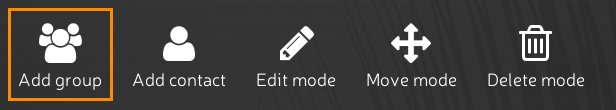

  3. Select Add group from the top bar;
  4. add group

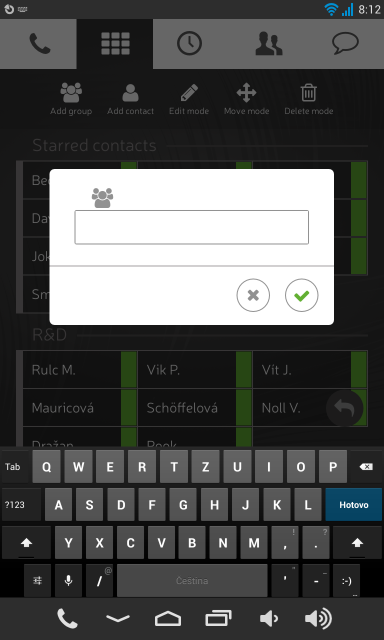

  5. Give a name to your group and save the name;
  6. give a name to group

  7. Return to switchboard by clicking on the back arrow in the bottom right corner.
  8. return

Add a contact

  1. While in switchboard tab, click on the settings button;
  2. settings

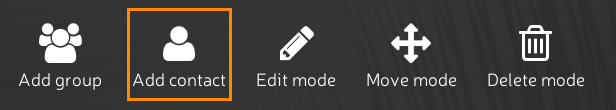

  3. Select Add contact from the top bar;
  4. add contact

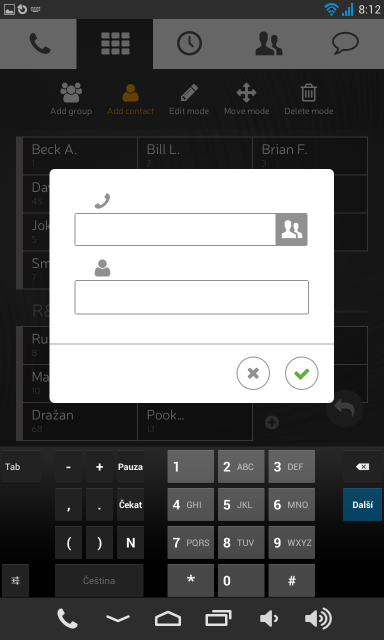

  5. Fill in the number and name of the new contact;
  6. number and name

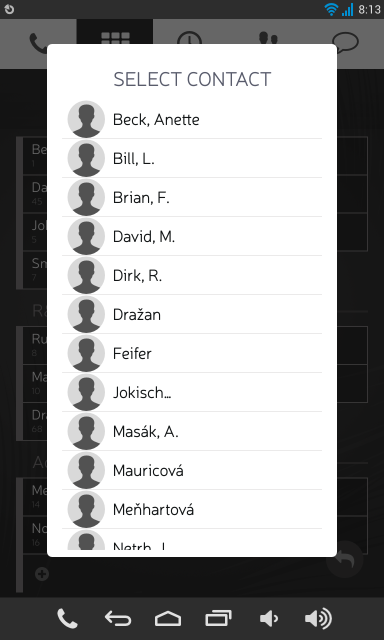

  7. Or select contact from contact list by clicking on the two heads button next to the field of the phone number;
  8. select name

  9. Get back to using switchboard by clicking on the back arrow in the bottom right corner.
  10. return

Edit contacts

  1. While in switchboard tab, click on the settings button;
  2. settings

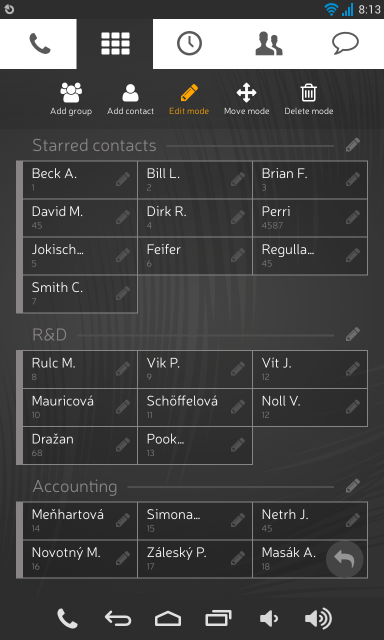

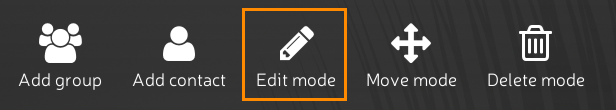

  3. Select Edit mode from the top bar;
  4. edit mode

  5. You can either edit name of the group or contact details, just click on the pencil icon next to the subject you want to edit;
  6. edit contact

  7. Confirm changes when editing is finished;
  8. Get back to using switchboard by clicking on the back arrow in the bottom-right corner.
  9. return

Move groups and contacts

  1. While in switchboard tab, click on the settings button;
  2. settings

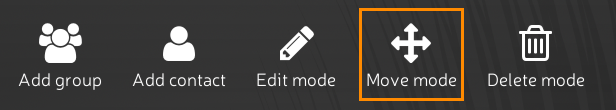

  3. Select Move mode from the top bar;
  4. move contacts

  5. Now click on contact or group you want to move, then click on place where you want to move them;
  6. Get back to using switchboard by clicking on the back arrow in the bottom right corner.
  7. return

Delete groups and contacts in the switchboard

  1. While in switchboard tab, click on the settings button;

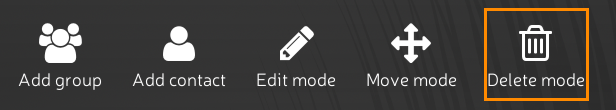

  2. Select Delete mode from the top bar;
  3. delete contact

  4. Now click on subject you want to delete, be it contact or group, then confirm the deletion;
  5. Get back to using the switchboard by clicking on the back arrow in the bottom-right corner.
  6. return

18. 10. 2016 GDP-08
